Routing Management in Campaign

Routing Tab lets you create the nodeflows to manage the routing of communication (chat, call, or email) in a campaign.

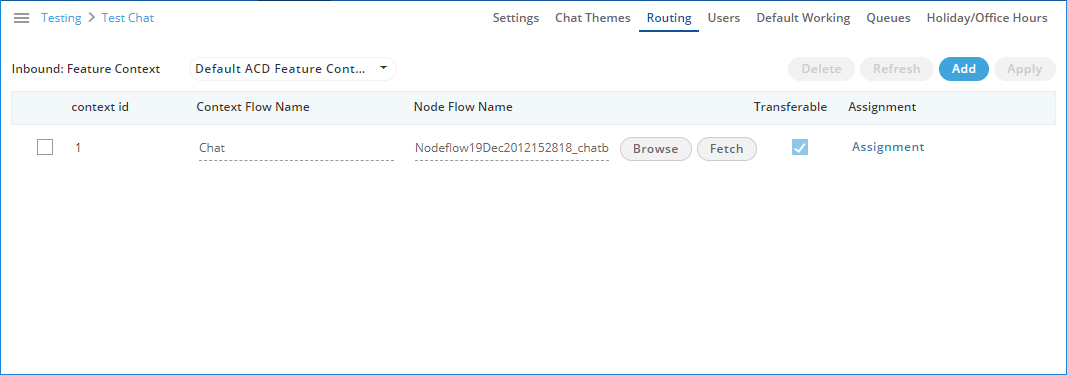

Figure: Routing Management

Create a Node Flow for Routing

Perform the following steps to create a nodeflow.

1. Click "Add" button to create a nodefflow. It shows a new row in the white area just below the column header.

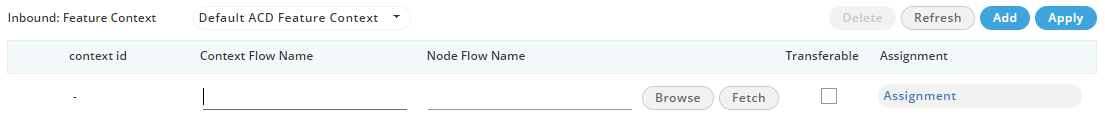

   Figure: Add Context Flow

2. Provide a name for the context flow.
3. In "Node Flow Name" column, you have to upload either a .nodeflow or .anfx flow.

   Service Engineer will provide you the required nodeflow files.

   Click "Browse" to open a nodeflow file. Select the location where the file stored. Select the required file and click "Open".
4. Check "Transferable" if you want to transfer the call from this nodeflow to another nodeflow.
5. Click "Apply" to add the nodeflow.

Assign Nodeflow to a Queue

Perform the following steps to assign a nodeflow to a queue in the campaign.

1. Check the box to select a queue.
2. Click "Assignment" to assign this nodeflow to a queue. It shows the following pop-up.

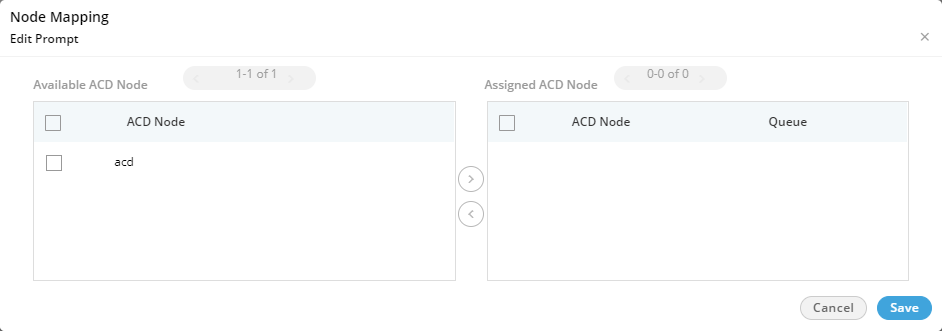

   Figure: Assign Nodeflow to a Queue

3. Select "ACD" node in "Available ACD Node" section, and click icon.
4. Select the nodeflow in "Assigned ACD Node" section.
5. In "Queue" drop-down menu, select the queue to which you want to assign this ndoeflow.
6. Click "Save" to assign the nodeflow to the selected queue. It takes you back to "Routing" Tab.

You can perform the same steps to create the nodeflow and to assign it to a queue.

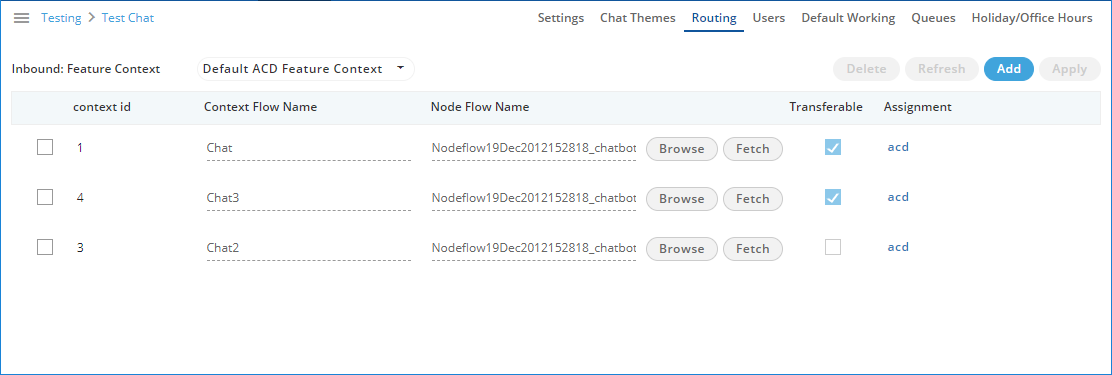

Figure: Added Nodeflows

You can fetch a nodeflow and download it as a file on the disk, assign or unassign it to a queue, and delete the nodeflow.
